Laminated Aluminum Foil Fiberglass Cloth Heat Resistant Waterproof Flexible

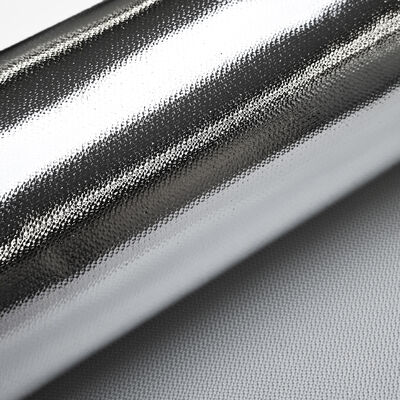

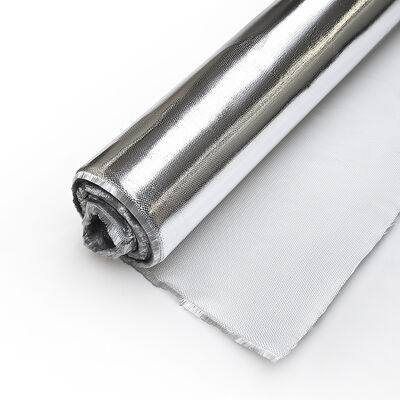

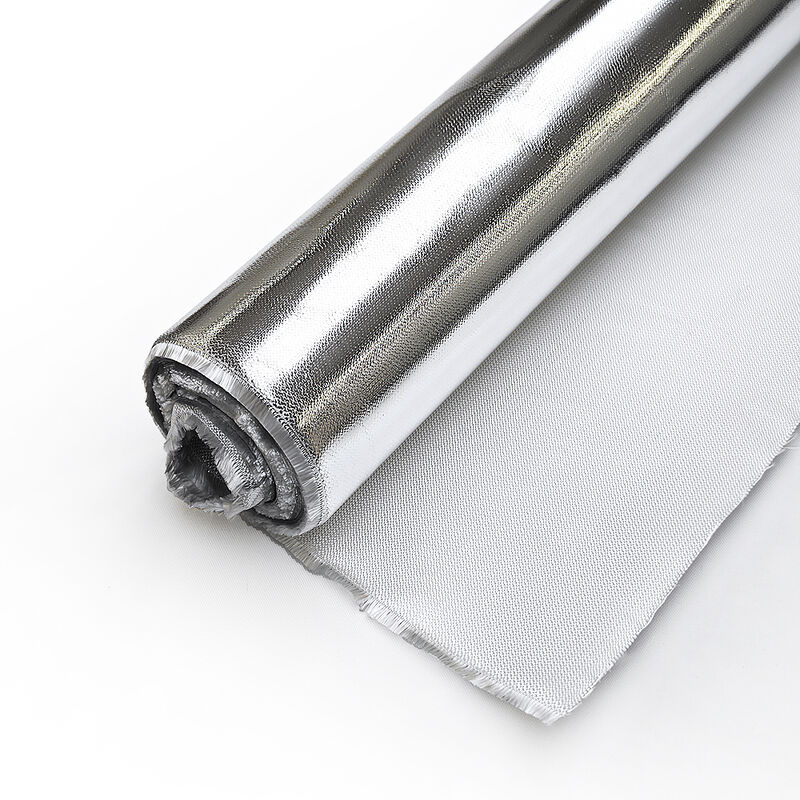

Laminated aluminum foil fiberglass cloth is a reflective protective material made of a fiberglass cloth base bonded with an aluminum foil layer. It is also known as aluminum foil fiberglass fabric, foil faced fiberglass cloth and reflective foil glass cloth.
Structure: aluminum foil + fiberglass cloth + adhesive laminated into a single sheet. The silver mirror face reflects radiant heat and the glass base resists flame and heat.
Base fabric: E-glass or C-glass woven cloth offers strength, non flammable performance and dimensional stability.
Process: laminated aluminum foil fiberglass cloth uses E-glass/C-glass fiberglass cloth as the base, laminated with an aluminum foil layer to form a silver mirror surface with high reflectivity. It reflects radiant heat and blocks heat transfer, is flat and flexible, easy to cut and fold, weather resistant and does not delaminate, giving a stable and durable structure with heat resistance and waterproof protection.
The laminated sheet is heat resistant, waterproof and flexible, resists oxidation and keeps a clean reflective surface for long term use.
Heat Resistant: stable from -70C to 280C with a flame retardant fiberglass base.
Waterproof And Weather Resistant: the foil facing resists water, moisture, ozone and UV.
Flexible And Conformable: stays soft, rolls and folds smoothly and is easy to cut and fit.
Reflective: over 90% thermal radiation reflectivity reduces heat transfer and surface temperature.
Antioxidant And Anti Microbial: resists oxidation, mold and microbial growth for long service life.
Strong And Tear Resistant: the reinforced lamination resists tearing, abrasion and peeling.
Chemical Resistance: resists oil, grease and mild acids and alkalis.
Customizable: foil thickness, total thickness, weight, width and roll length can be made to order.
| Parameter | Specification Range |
|---|---|
| Product Name | Laminated Aluminum Foil Fiberglass Fabric |
| Construction | Aluminum Foil + Fiberglass Fabric + Adhesive (laminated) |
| Weave Type | Plain Woven |
| Aluminum Foil Thickness | 25μm (0.001") |
| Fiberglass Base Fabric Weight | 150 – 600 g/m² |
| Total Thickness | 0.5 mm |
| Total Weight | 500 – 800 g/m² |
| Width | 100cm / 120cm / 150cm (39" / 47" / 59") |
| Color | Aluminum |
| Temperature Resistance | -70°C to 280°C (-94°F to 536°F) continuous Up to 300°C intermittent |
| Heat Reflectivity | ≥ 93% |
| Tensile Strength | ≥ 700 – 2400 N/50mm |
| Tear Strength | ≥ 70 – 250 N |
| Flame Resistance | UL94 V-0 / VW-1 |
| Moisture Resistance | Yes / Impermeable to water vapor |
| Chemical Resistance | Resistant to: oil, grease, acids/alkalis |
| Adhesive Type | Silicone |
| Peel Strength (Foil to Fabric) | ≥ 30 – 60 N/25mm |
| Roll Length | 50m / 100m / 200m |
| Standard Sizes (Pre-cut) | 1m x 5m / 1.2m x 10m / Custom |
| Packaging | Core tube + PE film + Carton / Pallet |
