Aluminum Foil Fiberglass Fabric Fireproof Antioxidant Anti Microbial Laminated

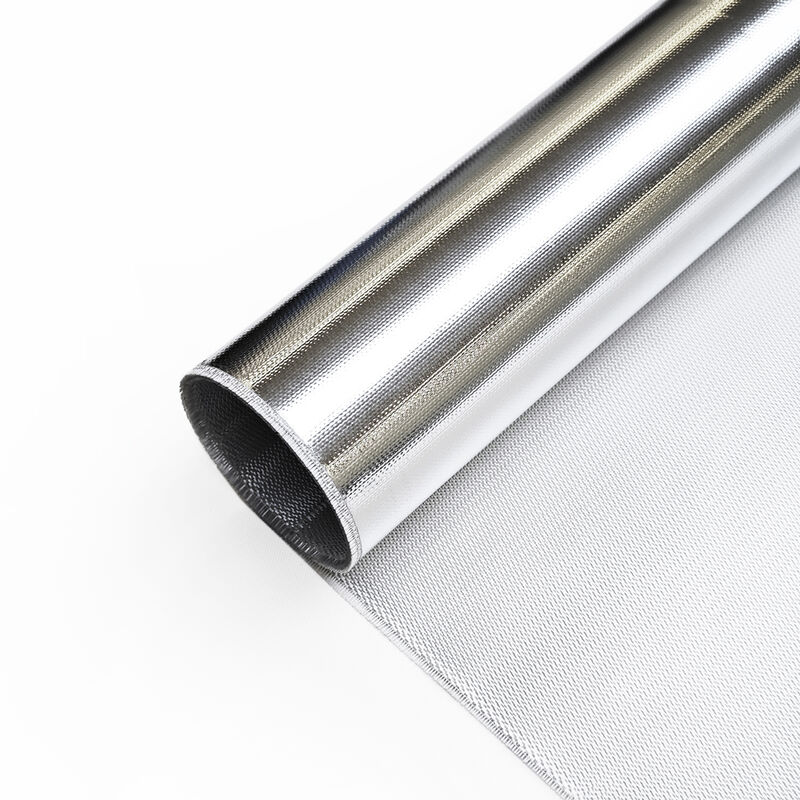

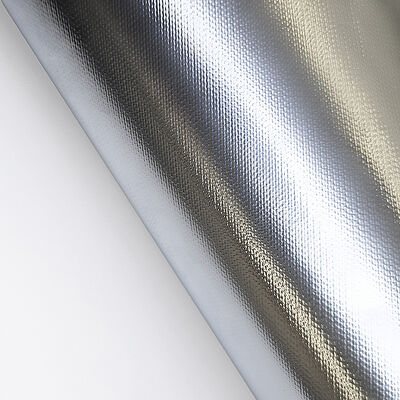

Aluminum foil fiberglass fabric is a laminated reflective material made of a fiberglass cloth base bonded with an aluminum foil layer. It is also called laminated aluminum foil cloth, foil faced fiberglass cloth and aluminized glass cloth.
Structure: aluminum foil + fiberglass cloth + adhesive laminated into one sheet. The silver reflective face resists heat and flame while the glass base gives strength and stability.
Base fabric: E-glass or C-glass woven cloth provides tensile strength, non flammable performance and a durable, stable structure.
Process: aluminum foil fiberglass fabric uses E-glass/C-glass fiberglass cloth as the base, laminated with an aluminum foil layer to form a silver mirror surface with high reflectivity. It reflects radiant heat and blocks heat transfer, is flat and flexible, easy to cut and fold, weather resistant and does not delaminate, giving a fireproof, antioxidant and anti microbial composite.
The laminated sheet resists oxidation, mold and bacteria, keeps a clean reflective surface and provides stable heat reflection with long term durability.
Fireproof And Flame Retardant: the flame retardant glass base and foil facing resist flame spread, sparks and radiant heat.
Antioxidant: the aluminum surface resists oxidation and keeps its reflective finish over time.
Anti Microbial: resists mold and bacterial growth, helping keep the material clean and hygienic.
Reflective: over 90% thermal radiation reflectivity reduces heat transfer and surface temperature.
Heat Resistant: stable from -70C to 280C for high temperature environments.
Waterproof And Moisture Proof: the foil facing is impermeable to water and water vapor.
Strong And Tear Resistant: the reinforced lamination resists tearing, abrasion and peeling.
Customizable: foil thickness, total thickness, weight, width and roll length can be made to order.
| Parameter | Specification Range |
|---|---|
| Product Name | Laminated Aluminum Foil Glass Fabric |
| Construction | Fiberglass Cloth + Aluminum Foil + Adhesive (laminated) |
| Weave Type | Twill Woven |
| Aluminum Foil Thickness | 7μm (0.00028") |
| Fiberglass Base Fabric Weight | 150 – 600 g/m² |
| Total Thickness | 0.35 mm |
| Total Weight | 450 – 750 g/m² |
| Width | 100cm / 150cm (39" / 59") |
| Color | Silver |
| Temperature Resistance | -70°C to 280°C (-94°F to 536°F) continuous Up to 300°C intermittent |
| Heat Reflectivity | ≥ 92% |
| Tensile Strength | ≥ 600 – 2200 N/50mm |
| Tear Strength | ≥ 60 – 220 N |
| Flame Resistance | UL94 V-0 / GB8624 B1 |
| Moisture Resistance | Yes / Water vapor barrier |
| Chemical Resistance | Resistant to: oil, grease, solvents |
| Adhesive Type | Acrylic |
| Peel Strength (Foil to Fabric) | ≥ 25 – 55 N/25mm |
| Roll Length | 30m / 60m / 120m |
| Standard Sizes (Pre-cut) | 1m x 2m / 1.2m x 5m / Custom |
| Packaging | Core tube + Kraft paper + Carton |
