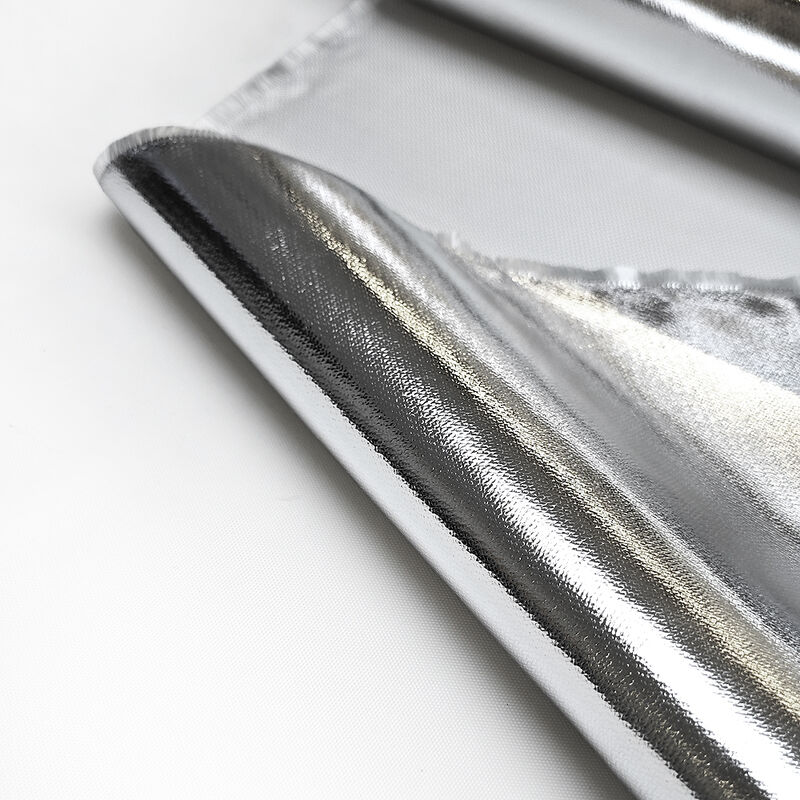

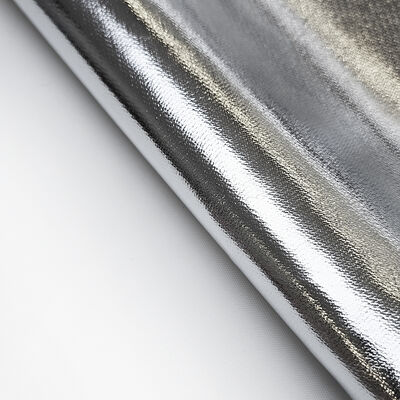

Reflective Aluminum Foil Glass Cloth Thermal Insulation Waterproof 0.25mm
Aluminum foil glass cloth is a laminated reflective insulation material made of a fiberglass cloth base bonded with an aluminum foil layer. It is also called reflective foil glass cloth, foil faced fiberglass cloth and aluminized glass fabric.
Structure: aluminum foil + fiberglass cloth + adhesive laminated into one sheet, giving a reflective silver surface that lowers surface temperature and blocks radiant heat.
Base fabric: E-glass or C-glass woven cloth provides strength, waterproof performance, heat resistance and a stable structure that resists delamination.
Process: aluminum foil glass cloth uses E-glass/C-glass fiberglass cloth as the base, laminated with an aluminum foil layer to form a silver mirror surface with high reflectivity. It reflects radiant heat and reduces heat transfer, stays flat and flexible, is easy to cut and fold and does not delaminate, giving a lightweight, waterproof structure with strong thermal insulation.
The thin laminated sheet is lightweight and flexible, resists moisture and oxidation and provides stable reflective thermal insulation.
Thermal Insulation: the reflective foil face blocks radiant heat and helps reduce heat transfer.
Reflective Surface: over 90% reflectivity lowers surface temperature and improves energy efficiency.
Waterproof And Vapor Proof: the foil facing resists moisture and water vapor ingress.
Lightweight: a thin, low weight construction that is easy to handle and install.
Heat Resistant: stable from -70C to 280C with a flame retardant fiberglass base.
Antioxidant And Anti Microbial: resists oxidation, mold and bacterial growth in humid conditions.
Strong And Durable: laminated construction resists tearing, peeling and long term wear.
Customizable: foil thickness, total thickness, weight, width and roll length can be made to order.
| Parameter | Specification Range |
|---|---|
| Product Name | Reflective Foil Glass Cloth |
| Construction | Aluminum Foil + Glass Fiber Cloth + Adhesive (lamination) |
| Weave Type | Satin Woven |
| Aluminum Foil Thickness | 12μm (0.00047") |
| Fiberglass Base Fabric Weight | 100 – 400 g/m² |
| Total Thickness | 0.25 mm |
| Total Weight | 250 – 450 g/m² |
| Width | 120cm / 150cm (47" / 59") |
| Color | Mirror Silver |
| Temperature Resistance | -70°C to 280°C (-94°F to 536°F) continuous Up to 300°C intermittent |
| Heat Reflectivity | ≥ 95% |
| Tensile Strength | ≥ 400 – 1600 N/50mm |
| Tear Strength | ≥ 40 – 160 N |
| Flame Resistance | UL94 V-0 / VW-1 |
| Moisture Resistance | Yes / Moisture proof |
| Chemical Resistance | Resistant to: oil, grease, mild alkalis |
| Adhesive Type | Pressure Sensitive (PSA) |
| Peel Strength (Foil to Fabric) | ≥ 15 – 40 N/25mm |
| Roll Length | 20m / 40m / 80m |
| Standard Sizes (Pre-cut) | 1m x 1m / 1.2m x 5m / Custom |
| Packaging | Core tube + PE film + Pallet |
