| MOQ: | 1000 pieces |
| Payment Terms: | T/T,PayPal,Xtransfer |
| Supply Ability: | 50000 pieces per day |

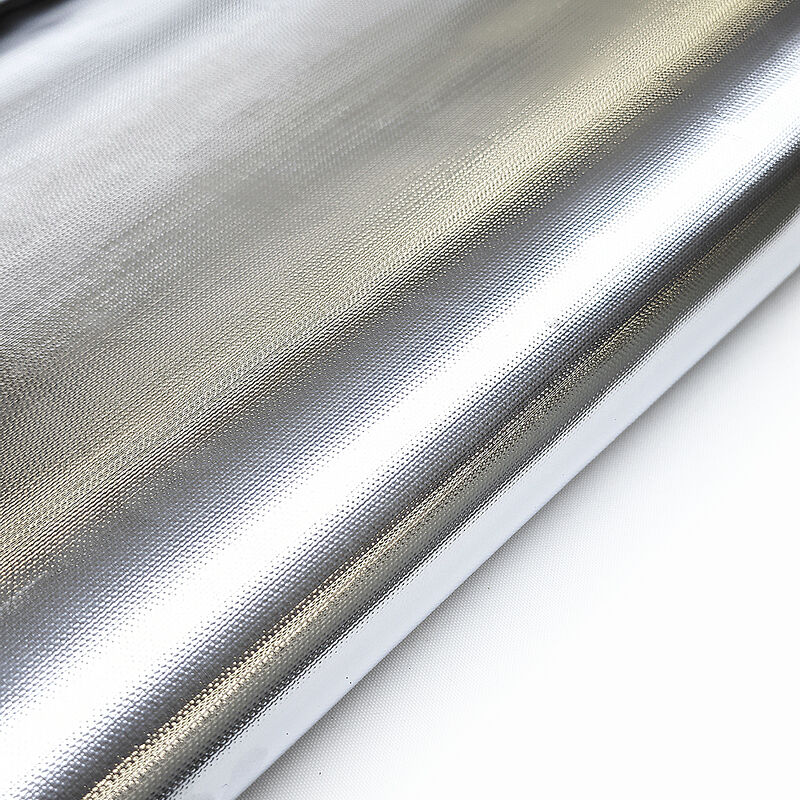

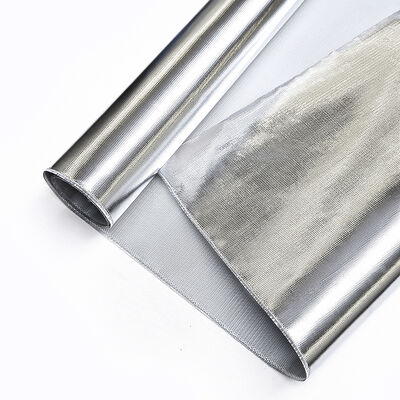

Aluminum Foil Fiberglass Cloth Reflective Waterproof Heat Insulation 0.4mm
Aluminum foil fiberglass cloth is a laminated reflective insulation material made of a fiberglass cloth base bonded with an aluminum foil layer. It is also known as aluminum foil fiberglass fabric, laminated aluminum foil cloth and reflective foil glass cloth.
Structure: aluminum foil + fiberglass cloth + adhesive, laminated into one sheet. The silver mirror surface gives a high reflectivity, so radiant heat is reflected and heat transfer is reduced.
Base fabric: E-glass or C-glass woven cloth offers high strength, dimensional stability, waterproof performance and heat resistance.
Process: aluminum foil fiberglass cloth uses E-glass/C-glass fiberglass cloth as the base, laminated with an aluminum foil layer to form a silver mirror surface with high reflectivity. It reflects radiant heat and blocks heat transfer, is flat and flexible, easy to cut and fold, weather resistant and does not delaminate, giving a stable and durable structure with waterproof heat insulation performance.
The laminated structure stays flat and flexible, resists delamination and oxidation, and provides stable reflective heat insulation with a waterproof, moisture proof surface.
Reflective Heat Insulation: the aluminum foil layer has a reflectivity over 90% for thermal radiation, reducing heat loss and heat transfer.
Waterproof And Moisture Proof: the foil facing is impermeable to water vapor and keeps the surface dry.
Heat Resistant: stable from -70C to 280C with a flame retardant fiberglass base.
Antioxidant And Anti Microbial: the aluminum surface resists oxidation, mold and microbial growth for a long service life.
High Strength: the glass cloth base with reflective foil resists tearing and puncture.
Flexible And Easy To Use: stays flat and soft, easy to cut and fold for wrapping and covering.
Chemical Resistance: resists oil, grease and mild acids and alkalis.
Customizable: foil thickness, total thickness, weight, width and roll length can be made to order.
| Parameter | Specification Range |
|---|---|
| Product Name | Aluminum Foil Fiberglass Cloth |
| Construction | Aluminum Foil + Fiberglass Cloth + Adhesive (lamination) |
| Weave Type | Plain Woven |
| Aluminum Foil Thickness | 9μm (0.00035") |
| Fiberglass Base Fabric Weight | 120 – 500 g/m² |
| Total Thickness | 0.4 mm |
| Total Weight | 400 – 600 g/m² |
| Width | 100cm / 120cm (39" / 47") |
| Color | Aluminum |
| Temperature Resistance | -70°C to 280°C (-94°F to 536°F) continuous Up to 300°C intermittent |
| Heat Reflectivity | ≥ 90% |
| Tensile Strength | ≥ 500 – 2000 N/50mm |
| Tear Strength | ≥ 50 – 200 N |
| Flame Resistance | UL94 V-0 / VW-1 |
| Moisture Resistance | Yes / Impermeable to water vapor |
| Chemical Resistance | Resistant to: oil, grease, mild acids/alkalis |
| Adhesive Type | Silicone |
| Peel Strength (Foil to Fabric) | ≥ 20 – 50 N/25mm |
| Roll Length | 25m / 50m / 100m |
| Standard Sizes (Pre-cut) | 1m x 1m / 1m x 5m / 1.2m x 10m |
| Packaging | Core tube + PE film + Carton / Pallet |
Q. 1: How long is the sample time ? Does the sample fee can be returned?
