| MOQ: | 1000 pieces |
| Payment Terms: | T/T, PayPal, Xtransfer |
| Supply Ability: | 50000 pieces per day |

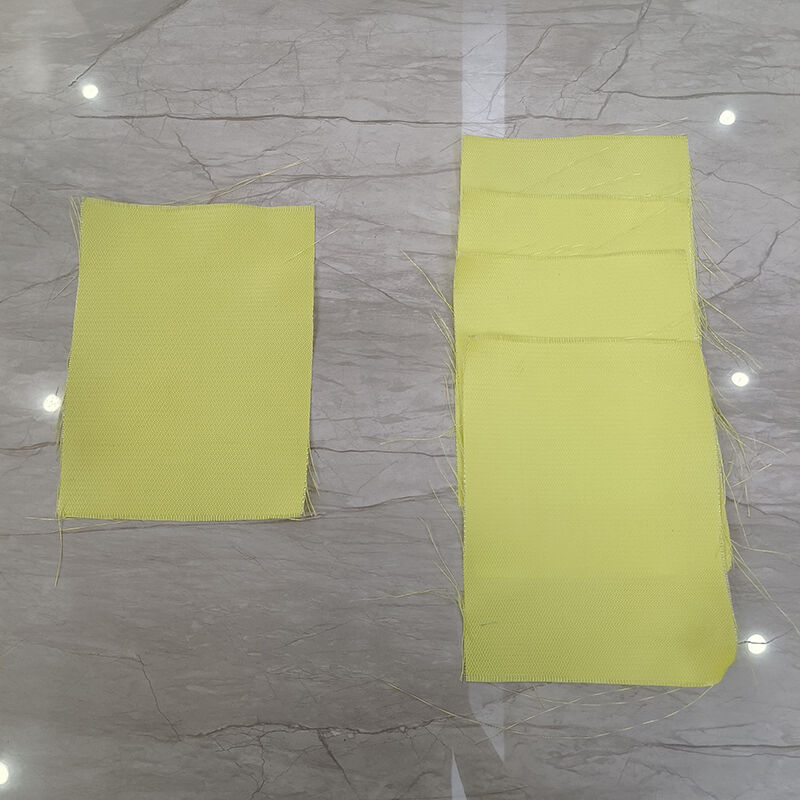

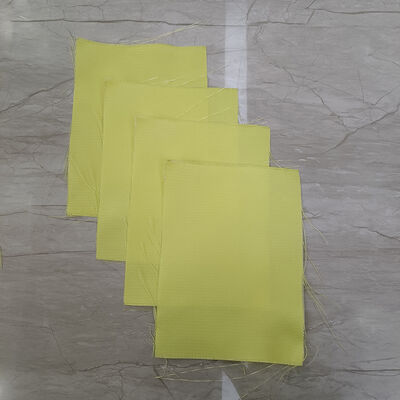

High Temperature Resistance Heat Protection 550 Degree Colored Dyed Color 7628 Fiberglass Cloth
In the vast field of materials science, there is a composite material that is quietly integrating into many aspects of modern life with its unique properties and diverse applications, which is acrylic dyed glass fiber cloth. As a product that combines traditional glass fiber with modern polymer resin technology, it embodies the clever balance of material engineering in functionality, aesthetics, and practicality.
Fiberglass substrate is the skeleton and source of strength of the material. Glass fiber is an extremely fine fiber made from natural minerals such as quartz sand and limestone, which are melted at high temperatures and drawn. These fibers have extremely high tensile strength, excellent heat resistance and non flammability, and stable chemical properties that are not easily corroded. Weaving it into a fabric shape forms a lightweight, high-strength, and porous flexible substrate.
| Parameter | Specification Range |
|---|---|
| Product Name | Colored / Dyed Fiberglass Fabric |
| Coloring Method | Pigment Coating (Acrylic-based) / Yarn Dyed / Surface Printing |
| Coating Type | Acrylic / Polyurethane / Silicone / Epoxy / Polyester |
| Glass Type | E-Glass / C-Glass / S-Glass / ECR-Glass |
| Weave Structure | Plain Weave / Twill Weave / Satin Weave / Lenor Weave |
| Color Evenness | Uniform / Consistent across width |
| Coating Adhesion | Excellent – no peeling or flaking |
| Coating Flexibility | High – no cracking on bending |
| Opacity / Coverage | Opaque – complete color coverage |
| Pigment Type | Inorganic pigments / Organic pigments |
| Tensile Strength (Warp) | ≥ 800 – 3500 N/50mm |
| Tensile Strength (Weft) | ≥ 600 – 3000 N/50mm |
| Abrasion Resistance | Good – surface coating protects fibers |
| Weather Resistance | Good for outdoor use (UV stabilized) |
| Dimensional Stability | ≤ 0.5% |
| Moisture Absorption | ≤ 1.0% |
| Application Methods for Color | Dip coating / Knife coating / Roll coating / Spray coating / Pad-dry-cure |
| Drying / Curing Temperature | 150°C – 200°C (302°F – 392°F) |
| Roll Length | 50m / 100m / 200m / Custom |
| Packaging | Core tube + PE film + Woven bag / Carton |
| Certifications |
ISO 9001 / RoHS / REACH / UL94 |
Q. 1: How long is the sample time ? Does the sample fee can be returned?
