| MOQ: | 1000 pieces |
| Payment Terms: | T/T, PayPal, Xtransfer |
| Supply Ability: | 50000 pieces per day |

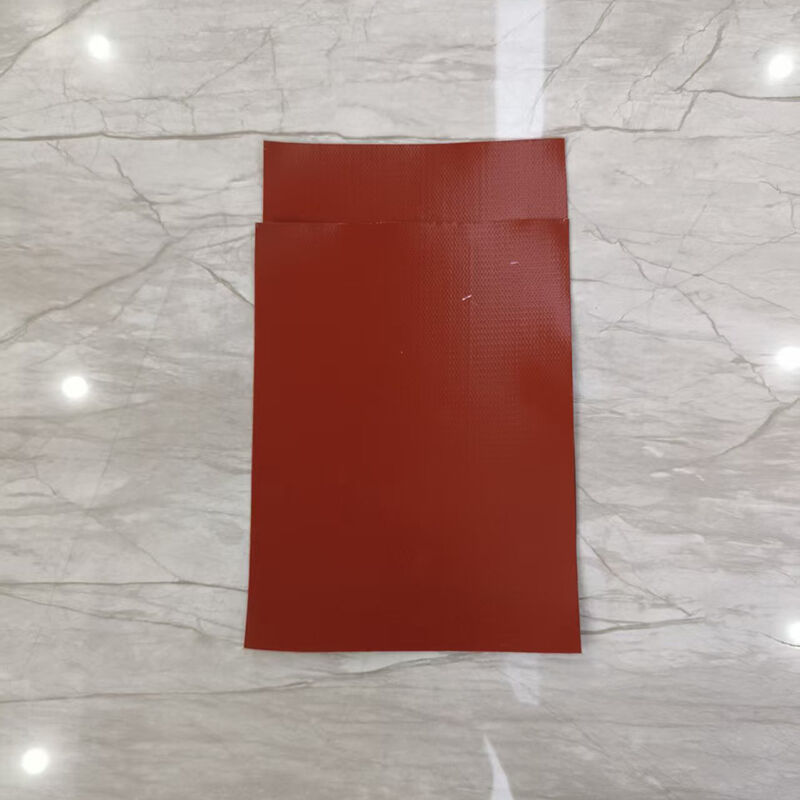

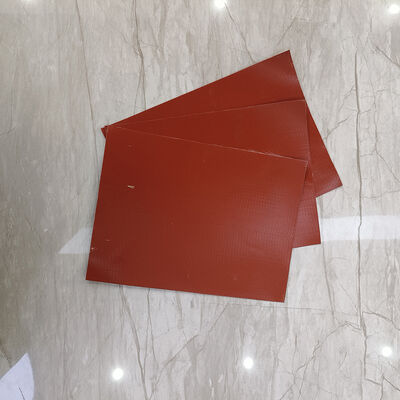

Silicone Composite Fiberglass Fabric Cloth M30 Calendering Technology
In the manufacturing and application process of fiberglass cloth, some issues need to be noted. Firstly, due to the high hardness of glass fiber itself, it can cause irritation and injury to the human skin and respiratory system. Therefore, protective measures should be taken during production and use to avoid direct contact and inhalation of glass fiber particles. Secondly, the quality and performance of fiberglass cloth are influenced by various factors such as manufacturing processes, materials, and equipment. Therefore, it is necessary to strictly control the production process and quality testing to ensure the quality and stability of the product.
In the application process of fiberglass cloth, it is necessary to choose appropriate specifications, models, and surface treatment methods according to different usage environments and requirements, in order to fully utilize its excellent performance and effects. Fiberglass cloth is an excellent high-temperature insulation material with a wide range of applications and market prospects. In future development, it is necessary to further strengthen technology research and quality control to meet the needs and challenges of different fields.
| Parameter | Specification Range |
|---|---|
| Product Name | Calendered Fiberglass Fabric |
| Process | Calendering / Compaction |
| Glass Type | E-Glass / C-Glass / S-Glass |
| Weave Structure | Plain Weave / Twill Weave / Satin Weave |
| Weight (g/m²) | 100 – 800 g/m² |
| Thickness Before Calendering (mm) | 0.15 – 1.5 mm |
| Thickness After Calendering (mm) | 0.08 – 1.0 mm |
| Thickness Reduction Rate | 20% – 50% |
| Density Increase | 15% – 40% |
| Surface Smoothness | Ra ≤ 2.0 μm (after calendering) |
| Surface Treatment | Heat Cleaned / Desized / Volan / Silane |
| Tensile Strength (Warp) | ≥ 1000 – 4000 N/50mm |
| Tensile Strength (Weft) | ≥ 800 – 3500 N/50mm |
| Elongation at Break | ≤ 3% – 5% |
| Tear Strength | ≥ 50 – 150 N |
| Temperature Resistance | 550°C – 800°C (1022°F – 1472°F) |
| Resin Compatibility | Epoxy / Polyester / Vinyl Ester / Phenolic |
| Common Calendering Temperature | 100°C – 300°C (212°F – 572°F) |
| Calendering Pressure | 10 – 100 tons |
Q. 1: How long is the sample time ? Does the sample fee can be returned?
