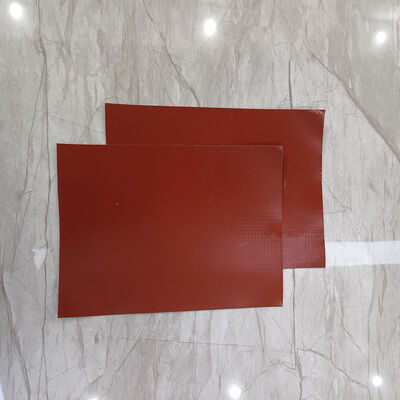

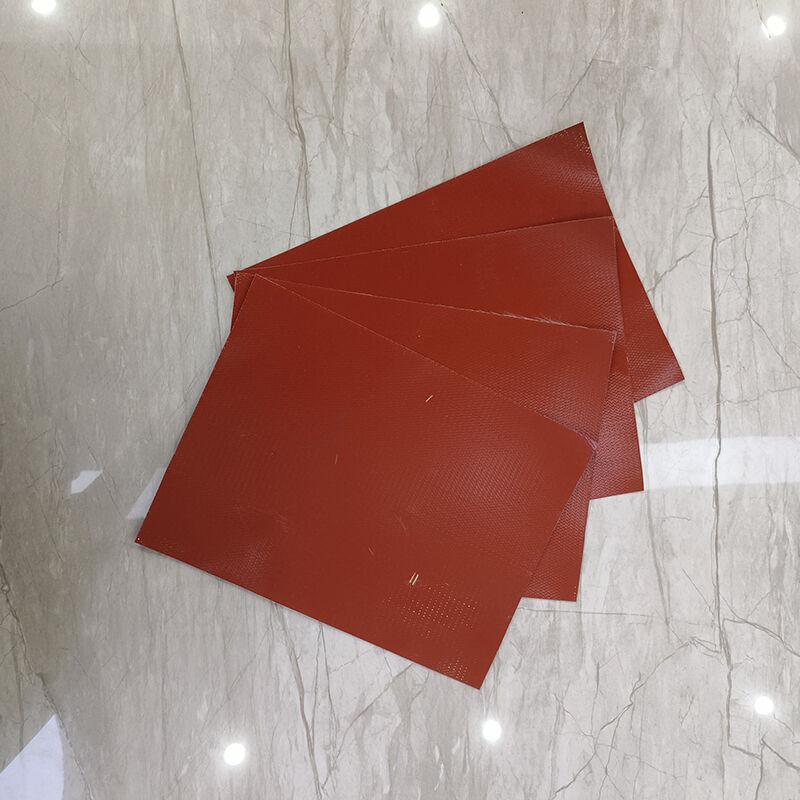

Smooth Surface Calendered Lightweight Fiberglass Cloth Heat Resistant Plain Woven

Smooth Surface Calendered Lightweight Fiberglass Cloth Heat Resistant Plain Woven

MOQ:	1000 pieces
Payment Terms:	T/T, PayPal, Xtransfer
Supply Ability:	50000 pieces per day

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China

Certification:

ISO9001

Yarn Type:

E-Glass

Weave Type:

Plain Woven

Coating:

Silicone Calendering

Application:

Wall/Roof Covering Clot

Surface Treatment:

Silicon Coated

Material:

100% Fiberglass + Silicone Rubber

Alkali Content:

Alkali Free

Weight:

660g- 2000 G/m2

Packaging Details:

Wooden frame or cardboard box packaging, customizable

Highlight:

calendered lightweight fiberglass cloth

lightweight fiberglass cloth heat resistant

smooth fiberglass resin cloth

Product Description

Smooth Surface Calendered Fiberglass Fabric High Quality Heat Resistant Calendered Fiberglass Fabric

Product Description

Silicone Calender Coated Fabric are made of silicone emulsion coated fiberglass with unique technology. our Silicone Coated Glass Cloth use the superior strength and dimensional stability of woven fiberglass with a high temperature silicone coating,results in such a conformable, flexible, trackable, and wear resistant fabric, whichi is appropriate for use in a variety of demanding applications. Our silcone coated fiberglass fabrics have excellent thermal and mechanical properties. Also, the silicone coating supply better friction than PTFE coated fiberglass fabrics with very good release properties, especially when in contact with adhesives and other tacky substances.

Features

Absorbing vibrations, compensating for displacements: The embossed glass fiber cloth has excellent elasticity and high flexibility, making it the core material for manufacturing non-metallic compensators (soft connections) and skins. It can effectively solve the deformation and damage caused by thermal expansion and contraction in the pipeline system, absorb mechanical vibrations, and extend the overall service life of the equipment.

High insulation strength, resistant to high voltage: It has a high electrical insulation grade, with a stable dielectric constant (3-3.2), and the breakdown voltage can reach 20-50KV/MM. It is an ideal material for making insulation cloth, bushings, and protective parts for motor electrical control, ensuring the safety of electrical operations.

Heat preservation and insulation, energy saving and consumption reduction: The thermal conductivity is low and the insulation performance is excellent. It is used to make detachable insulation covers (commonly known as "iron jackets"), which can precisely fit various irregularly shaped equipment such as valves and heat exchangers, reducing heat loss and improving working conditions; at the same time, it can also be used as a fire curtain or electric welding protection blanket to protect the safety of operators.

Resistant to harsh media, with tight sealing: It has excellent tolerance to lubricating oil, fuel, and acidic/alkaline chemical agents (particularly outstanding in the fluorocarbon coating). Suitable for anti-corrosion coatings inside and outside storage tanks, as well as acid and alkali resistant flexible connections, completely preventing leakage.

Technical Parameters

Parameter	Specification Range
Product Name	Calendered Fiberglass Fabric
Process	Calendering / Compaction
Glass Type	E-Glass / C-Glass / S-Glass
Weave Structure	Plain Weave / Twill Weave / Satin Weave
Weight (g/m²)	100 – 800 g/m²
Porosity / Air Permeability	Reduced by 30-60% after calendering
Surface Treatment	Heat Cleaned / Desized / Volan / Silane
Tensile Strength (Warp)	≥ 1000 – 4000 N/50mm
Tensile Strength (Weft)	≥ 800 – 3500 N/50mm
Elongation at Break	≤ 3% – 5%
Tear Strength	≥ 50 – 150 N
Temperature Resistance	550°C – 800°C (1022°F – 1472°F)
Resin Compatibility	Epoxy / Polyester / Vinyl Ester / Phenolic
Coating Compatibility	Silicone / PTFE / Acrylic / Polyurethane
Flame Resistance	Non-combustible / Self-extinguishing
Roller Speed	5 – 50 m/min
Number of Calendering Passes	1 – 3 passes
Roll Length	50m / 100m / 200m / Custom
Packaging	Moisture-proof paper + Plastic film + Woven bag / Carton

Smooth Surface Calendered Lightweight Fiberglass Cloth Heat Resistant Plain Woven

FAQ

Q. 1: How long is the sample time ? Does the sample fee can be returned?

Proofing is usually 3-5 working days. If the order reach or exceed behind MOQ quantity, proofing fee refunded. If not reached behind MOQ quantity, proofing fee will be taken by you.
Q. 2: About the sample what is the cost of transportation?The freight depends on weight, packing size and your country or province region, etc.

You can confirm by photo and video to save this money, If you become our old customer.

Q. 3: How long can I expect to get the sample?

The samples will be ready for delivery in 3-5days. The samples will be sent via international express and would be arrived within 3-5 days.

Q. 4: Do you accept customized orders?

Yes, we do. Your customized orders are always welcomed. Please kindly offer us your samples or drawings, so that we can customize the products according to your preferences. About any further detail, please feel free to contact us.

Q. 5: Can we have our Logo or company name to be printed on your products or package?

Sure. Your Logo could be printed on your products by Hot Stamping, Printing, Embossing, UV Coating, Silk-screen Printing or Sticker.

Q. 6: How to order?

Please send us your purchase order by Email or call us sales line

We need to know the following information for your order before sending you PI.

1) Product information-Quantity, Specification(Size, Material, Technological if needed and Packing requirements etc.)

2) Delivery time required.

3) Shipping information-Company name, Street address, Phone&Fax number, Destination sea port.

4) Forwarder's contact details if there's any in China.

Q. 7: How can order the products without any acknowledge of import ?

We could arrange you shipping or air or express for you and deliver everything to your port or provide you door to door service.

Q. 8: Do you have stock ?

We have a warehouse with a lot of stock, and most of the products are in normal production. If we have stock, we can deliver immediately.
