| MOQ: | 1000 pieces |
| Payment Terms: | T/T, PayPal, Xtransfer |
| Supply Ability: | 50000 pieces per day |

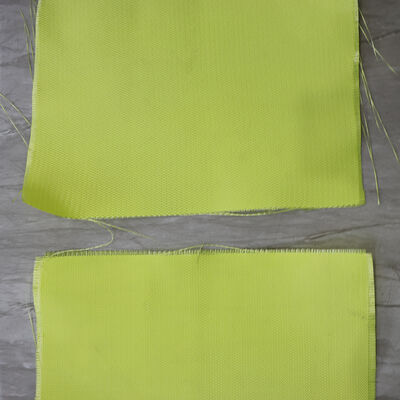

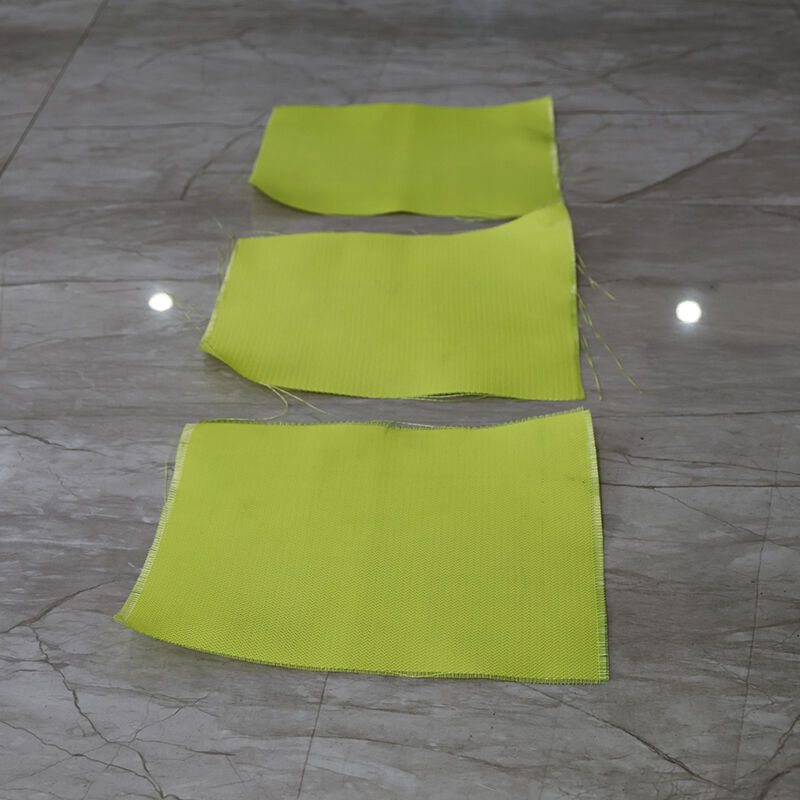

Fiberglass Fabric Coloured Fiberglass Cloth Tela En Fibra De Vidrio For Storage Tanks Pipelines
The dyeing process of fiberglass cloth has its own unique characteristics. Firstly, the surface of glass fiber is smooth and chemically stable, which makes it difficult for dyes to adhere. Therefore, pre-treatment of glass fiber cloth is usually required before dyeing to increase its surface roughness and activity, and improve the adsorption capacity of dyes. Pre treatment methods include chemical treatment, plasma treatment, etc. Chemical treatment can use reagents such as acid and alkali to etch the surface of glass fibers, increasing the number of micropores and active groups on the surface; Plasma treatment is achieved by bombarding the surface of glass fibers with high-energy plasma, which generates free radicals on the surface and enhances its activity.
| Parameter | Specification Range |
|---|---|
| Product Name | Colored / Dyed Fiberglass Fabric |
| Coloring Method | Pigment Coating (Acrylic-based) / Yarn Dyed / Surface Printing |
| Tensile Strength (Warp) | ≥ 800 – 3500 N/50mm |
| Tensile Strength (Weft) | ≥ 600 – 3000 N/50mm |
| Elongation at Break | ≤ 3% – 5% |
| Temperature Resistance | 100°C – 180°C (212°F – 356°F) continuous Up to 200°C (392°F) intermittent |
| Flame Resistance | Self-extinguishing / Flame retardant |
| UV Resistance | High – UV stable pigments |
| Water Resistance | Water repellent / Waterproof |
| Chemical Resistance | Resistant to: mild acids, alkalis, oils, grease |
| Abrasion Resistance | Good – surface coating protects fibers |
| Weather Resistance | Good for outdoor use (UV stabilized) |
| Dimensional Stability | ≤ 0.5% |
| Moisture Absorption | ≤ 1.0% |
| Application Methods for Color | Dip coating / Knife coating / Roll coating / Spray coating / Pad-dry-cure |
| Drying / Curing Temperature | 150°C – 200°C (302°F – 392°F) |
| Roll Length | 50m / 100m / 200m / Custom |
| Packaging | Core tube + PE film + Woven bag / Carton |
| Certifications |
ISO 9001 / RoHS / REACH / UL94 |
Q. 1: How long is the sample time ? Does the sample fee can be returned?
