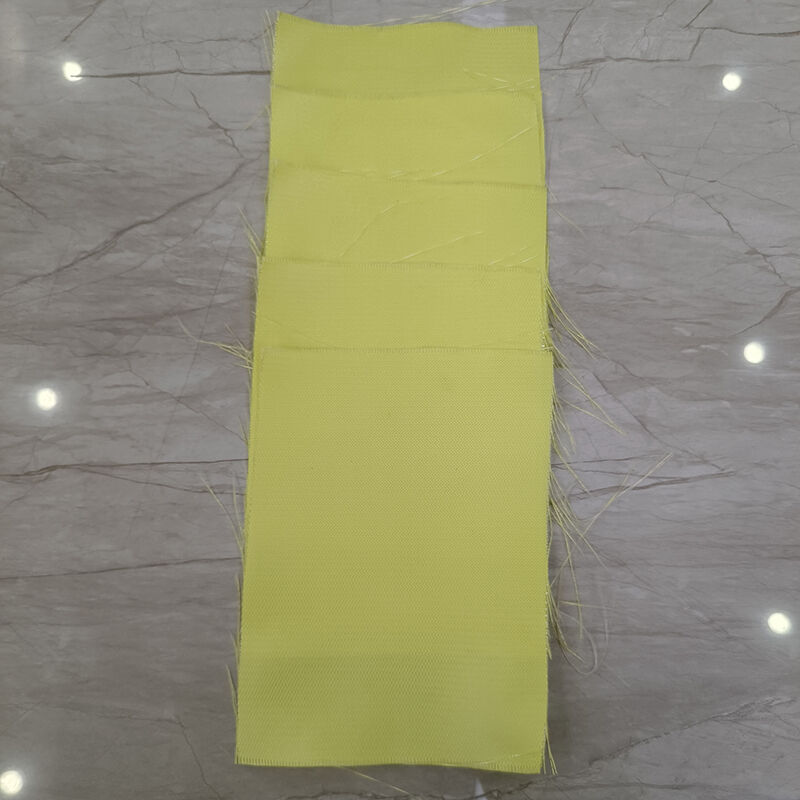

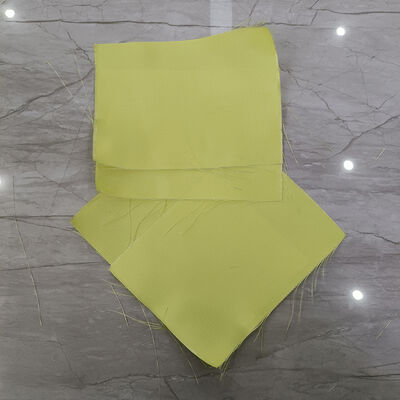

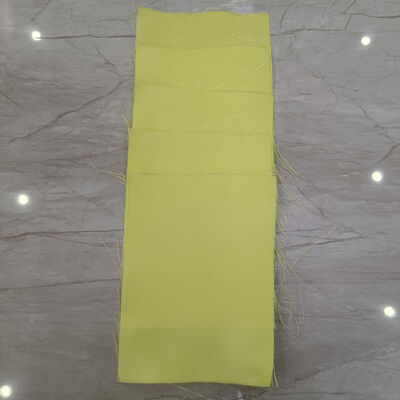

Colored Fiberglass Mesh Cloth With Silicone Coated Fire Proof Fabric Cutting Service Available
Fiberglass checkerboard, as a common reinforcing material, is determined by its basic composition and structural design. The type with a width specification of 1.27 meters demonstrates specific adaptability in production and use. The width parameter is not arbitrarily set, it affects the efficiency and material utilization of subsequent processing steps. In continuous production processes, this width usually has a certain matching relationship with common products or laying molds, which can reduce cutting losses and adapt to the needs of mechanized operations.
From the perspective of material composition, the main body of this fabric is glass fiber yarn. Glass fiber is made by high-speed drawing of molten glass, usually composed mainly of silicon dioxide and containing oxides such as calcium and aluminum. This component endows the fiber with inherent high strength and heat resistance. After fibers are spun into yarn, they are interwoven with warp and weft to form a grid like structure, which is the key to material properties. The interweaving points of warp and weft yarns provide stable mechanical nodes, allowing the forces on the fabric in all directions within the plane to be transmitted and dispersed through the grid, thereby resisting deformation.
| Parameter | Specification Range |
|---|---|
| Product Name | Colored / Dyed Fiberglass Fabric |
| Coloring Method | Pigment Coating (Acrylic-based) / Yarn Dyed / Surface Printing |
| Finished Weight (g/m²) | 100 – 700 g/m² |
| Base Fabric Thickness (mm) | 0.08 – 0.80 mm |
| Finished Thickness (mm) | 0.10 – 1.00 mm |
| Width (cm/in) | 100cm / 127cm / 150cm / 200cm (39" / 50" / 59" / 79") |
| Standard Colors | Black / White / Red / Blue / Green / Yellow / Orange / Gray |
| Color Evenness | Uniform / Consistent across width |
| Coating Adhesion | Excellent – no peeling or flaking |
| Coating Flexibility | High – no cracking on bending |
| Elongation at Break | ≤ 3% – 5% |
| Temperature Resistance | 100°C – 180°C (212°F – 356°F) continuous Up to 200°C (392°F) intermittent |
| Flame Resistance | Self-extinguishing / Flame retardant |
| UV Resistance | High – UV stable pigments |
| Water Resistance | Water repellent / Waterproof |
| Chemical Resistance | Resistant to: mild acids, alkalis, oils, grease |
| Abrasion Resistance | Good – surface coating protects fibers |
| Drying / Curing Temperature | 150°C – 200°C (302°F – 392°F) |
| Roll Length | 50m / 100m / 200m / Custom |
| Packaging | Core tube + PE film + Woven bag / Carton |
| Certifications |
ISO 9001 / RoHS / REACH / UL94 |
