| MOQ: | 1000 pieces |
| Payment Terms: | T/T, PayPal, Xtransfer |
| Supply Ability: | 50000 pieces per day |

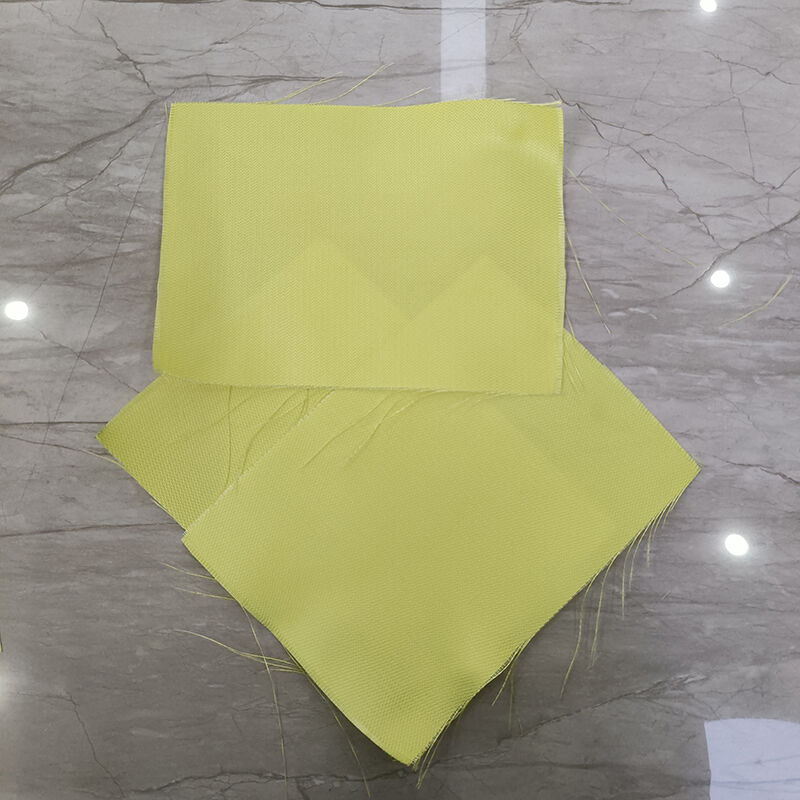

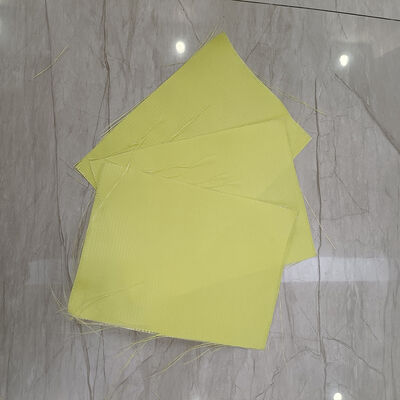

Colored Glass Fiber Plating Cloth Twill/Plain Weave Electroplated Fiberglass Fabric E-Glass
When choosing and using dyed fiberglass cloth, there are several key points worth paying attention to:
1. Performance parameter attention: Special attention should be paid to the unit area weight (gram weight), thickness, longitudinal and transverse tensile strength of the base fabric; In terms of coating, attention should be paid to coating amount, color fastness (sun resistance, friction resistance), flame retardant level (if necessary), acid alkali salt resistance, etc. These parameters are directly related to the applicability and lifespan of the final product.
2. Application environment matching: Select products with corresponding weather resistance and chemical tolerance levels based on the actual usage environment (indoor, outdoor, types of chemical media, etc.). For example, outdoor applications that are exposed to strong sunlight for a long time have higher requirements for the UV absorber content and color sun resistance level of the coating.
3. Processing and maintenance: Although its processing performance is better than uncoated glass fiber cloth, attention should still be paid to preventing fiber shavings during cutting and sewing. It is recommended to take appropriate protective measures. When cleaning, neutral detergent and soft brush can generally be used for rinsing, avoiding the use of strong acid and alkali cleaners and hard objects for scratching.
4. Quality identification: High quality products usually have uniform color, smooth coating without particles or bubbles, clear fabric texture, and neat edges without loose threads. Samples can be requested for simple bending, friction, and dripping tests to observe whether the coating is flexible and does not crack, whether the color falls off, and whether water droplets can roll off the surface (indicating continuous and dense coating).
| Parameter | Specification Range |
|---|---|
| Product Name | Colored / Dyed Fiberglass Fabric |
| Base Fabric Thickness (mm) | 0.08 – 0.80 mm |
| Finished Thickness (mm) | 0.10 – 1.00 mm |
| Width (cm/in) | 100cm / 127cm / 150cm / 200cm (39" / 50" / 59" / 79") |
| Standard Colors | Black / White / Red / Blue / Green / Yellow / Orange / Gray |
| Color Evenness | Uniform / Consistent across width |
| Coating Adhesion | Excellent – no peeling or flaking |
| Coating Flexibility | High – no cracking on bending |
| Opacity / Coverage | Opaque – complete color coverage |
| Pigment Type | Inorganic pigments / Organic pigments |
| Water Resistance | Water repellent / Waterproof |
| Chemical Resistance | Resistant to: mild acids, alkalis, oils, grease |
| Abrasion Resistance | Good – surface coating protects fibers |
| Weather Resistance | Good for outdoor use (UV stabilized) |
| Dimensional Stability | ≤ 0.5% |
| Moisture Absorption | ≤ 1.0% |
| Application Methods for Color | Dip coating / Knife coating / Roll coating / Spray coating / Pad-dry-cure |
| Drying / Curing Temperature | 150°C – 200°C (302°F – 392°F) |
Q. 1: How long is the sample time ? Does the sample fee can be returned?
