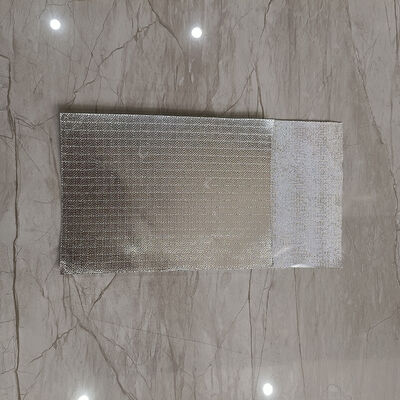

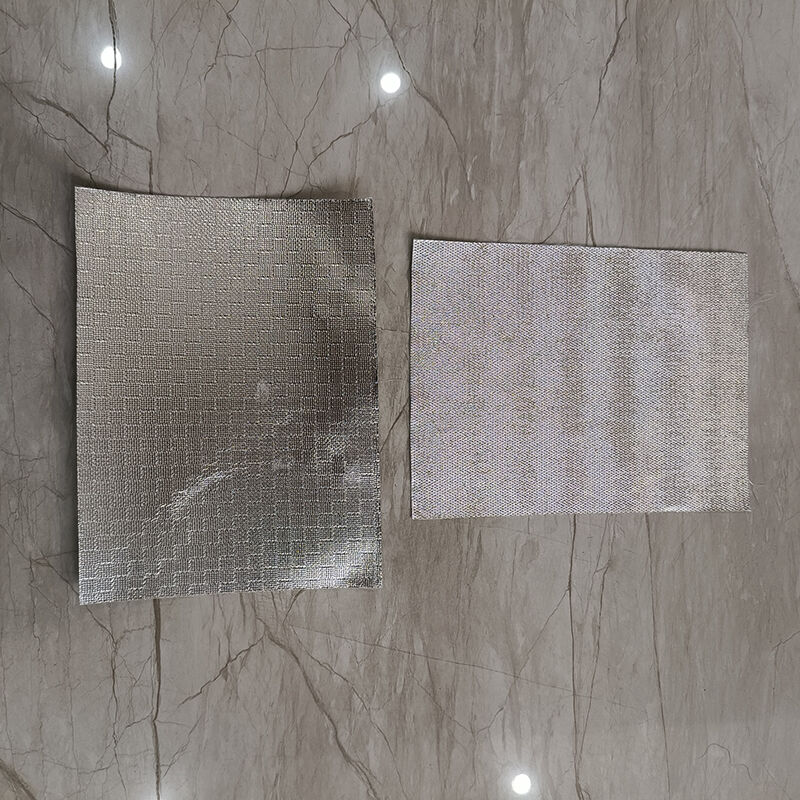

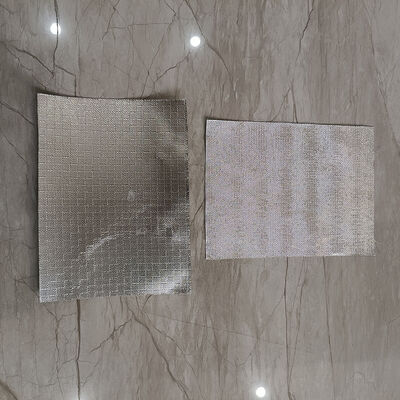

Custom Aluminum Foil Coated Fiberglass Cloth Thermal Insulation 1m 1.2m 1.5m Width

Custom Aluminum Foil Coated Fiberglass Cloth Thermal Insulation 1m 1.2m 1.5m Width

MOQ:	1000 pieces
Payment Terms:	T/T, PayPal, Xtransfer
Supply Ability:	50000 pieces per day

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China

Certification:

ISO9001

Name:

Aluminum Foil Fiberglass Fabric

Function:

Antioxidant And Thermal Insulation

Material:

Fiberglass Fabric+aluminum Laminated

Weave Type:

Plain, Twill,Satin

Standing Temperature:

-70℃ To 280°C

Glass Type:

E-glass/ C-glass

Width:

1m/1.2m/1.5m/as Required

Color:

Silvery

Application:

Waterproof, Heat Resistant.anti-microbial

Packaging Details:

Wooden frame or cardboard box packaging, customizable

Highlight:

aluminum foil coated fiberglass cloth thermal

thermal aluminum foil fiberglass

insulation aluminum foil fiberglass

Product Description

With Custom High Temperature Resistance Thermal Insulation Aluminum Foil Coated Fiberglass Fabric

Product Description

Pipeline and Exhaust Insulation

This fabric is often used to insulate pipes and exhaust systems, protecting them from heat loss and exposure to harmful substances. It helps extend the lifespan of equipment while improving energy efficiency.

Protective Gear in High-Temperature Workplaces

Industries like steel production, shipbuilding, and foundries rely on this fabric to make protective gloves, caps, and shields. Its high heat resistance ensures workers’ safety in extreme temperature environments.

Automotive and Motorbike Parts

In the automotive industry, the fabric is applied as insulation for engine components, boilers, and exhausts. Its heat-resistant properties reduce wear and tear, extending the life of mechanical parts and improving performance.

Thermal Insulation Blankets

This fabric is also used to create thermal insulation blankets for industrial use. These blankets trap heat, enhancing energy efficiency in environments that need reliable temperature control.

Features

Excellent insulation and heat reflection: The aluminum foil layer has a reflectivity of over 90% for far-infrared thermal radiation, significantly reducing heat conduction and suitable for insulation and heat preservation scenarios.

High temperature resistance and flame retardancy: Glass fiber substrate can withstand temperatures up to -196 ℃ to 300 ℃ (some products can reach 500-600 ℃), complying with GB8624 A1 or DIN4102 A1 non combustible standards, and self extinguishing upon ignition.

High strength and flexibility are combined: the longitudinal and transverse tensile strength can reach 8000 × 6000 N/5cm, the texture is firm and not easy to tear, while maintaining a certain degree of flexibility for easy construction.

Good moisture resistance and sealing: The aluminum foil layer achieves near zero water vapor permeability, making it impermeable and non breathable, effectively blocking moisture and protecting the core material (such as rock wool and glass wool).

Strong corrosion resistance and weather resistance: treated with anti-corrosion coating or polyethylene hot air composite process, resistant to acid and alkali, mold and suitable for humid, industrial or outdoor environments.

Lightweight and easy to construct: The thickness is usually 0.25-3.0 mm, and the weight is 75-2000 g/m ². It can be cut and bonded, and is commonly used for air duct wrapping, pipeline insulation, equipment protection, etc.

Technical Parameters

Parameter	Specification Range
Product Name	Fiberglass Aluminum Foil Fabric
Construction	Aluminum Foil + Fiberglass Fabric + Adhesive (lamination)
Aluminum Foil Thickness	7μm – 25μm (0.00028" – 0.001")
Fiberglass Base Fabric Weight	100 – 600 g/m²
Width	100cm / 120cm / 150cm (39" / 47" / 59")
Color	Aluminum
Temperature Resistance	-30°C to 150°C (-22°F to 300°F) continuous Up to 200°C (392°F) intermittent
Heat Reflectivity	≥ 90%
Tensile Strength	≥ 500 – 2000 N/50mm
Tear Strength	≥ 50 – 200 N
Chemical Resistance	Resistant to: oil, grease, mild acids/alkalis
Adhesive Type	Acrylic / Silicone / Pressure Sensitive (PSA)
Peel Strength (Foil to Fabric)	≥ 20 – 50 N/25mm
Roll Length	25m / 50m / 100m / Custom
Standard Sizes (Pre-cut)	1m x 1m / 1m x 5m / 1.2m x 10m / Custom
Packaging	Core tube + PE film + Carton / Pallet

Custom Aluminum Foil Coated Fiberglass Cloth Thermal Insulation 1m 1.2m 1.5m Width

FAQ

Q. 1: How long is the sample time ? Does the sample fee can be returned?

Proofing is usually 3-5 working days. If the order reach or exceed behind MOQ quantity, proofing fee refunded. If not reached behind MOQ quantity, proofing fee will be taken by you.
Q. 2: About the sample what is the cost of transportation?The freight depends on weight, packing size and your country or province region, etc.

You can confirm by photo and video to save this money, If you become our old customer.

Q. 3: How long can I expect to get the sample?

The samples will be ready for delivery in 3-5days. The samples will be sent via international express and would be arrived within 3-5 days.

Q. 4: Do you accept customized orders?

Yes, we do. Your customized orders are always welcomed. Please kindly offer us your samples or drawings, so that we can customize the products according to your preferences. About any further detail, please feel free to contact us.

Q. 5: Can we have our Logo or company name to be printed on your products or package?

Sure. Your Logo could be printed on your products by Hot Stamping, Printing, Embossing, UV Coating, Silk-screen Printing or Sticker.

Q. 6: How to order?

Please send us your purchase order by Email or call us sales line

We need to know the following information for your order before sending you PI.

1) Product information-Quantity, Specification(Size, Material, Technological if needed and Packing requirements etc.)

2) Delivery time required.

3) Shipping information-Company name, Street address, Phone&Fax number, Destination sea port.

4) Forwarder's contact details if there's any in China.

Q. 7: How can order the products without any acknowledge of import ?

We could arrange you shipping or air or express for you and deliver everything to your port or provide you door to door service.

Q. 8: Do you have stock ?

We have a warehouse with a lot of stock, and most of the products are in normal production. If we have stock, we can deliver immediately.
