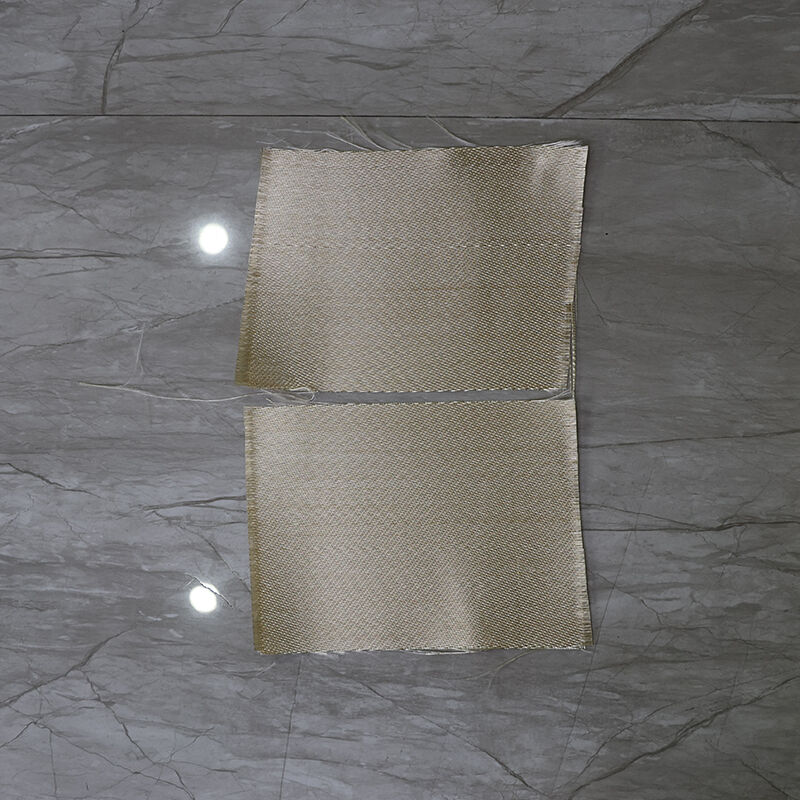

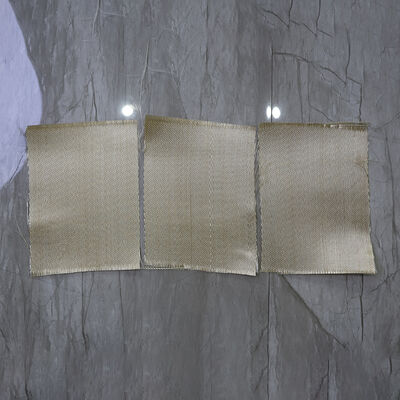

Fireproof Blanket Heat Treated Fiberglass Cloth Golden For Welding Blanket

Fireproof Blanket Heat Treated Fiberglass Cloth Golden For Welding Blanket

MOQ:	1000 pieces
Payment Terms:	T/T, PayPal, Xtransfer
Supply Ability:	50000 pieces per day

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China

Certification:

ISO9001

Application:

High Temperature Insulation

Weave Type:

Twill Woven

Material:

100% Fiberglass

Standing Temperature:

550℃

Raw Material:

Fiber Glass Roving

Color:

Golden

Technology:

Dewaxed/Desized

Surface Cleanliness:

High – No Organic Contamination

Dimensional Stability:

≤ 0.5%

Packaging Details:

Wooden frame or cardboard box packaging, customizable

Highlight:

heat treated fiberglass cloth golden

golden fireproof fiberglass cloth

woven fireproof fiberglass cloth

Product Description

Fireproof Blanket Heat-Treated Fiberglass Cloth Fireproof Fabric For Welding Blanket

Product Description

Glass Fiber Fabric with Heat Treatment, provides better durability. Thicker, heavier and stronger Fabric far more resistance to heat impact from welding sparks as compared to other thinner and textured clothes. Non hairy texture preventing irritation to be exposed skin, common in other fabric and asbestos clothes. Reduce the overall impact temperature and prevent burn through. Temperature resistance capability of up to 550°C, and can sustain even higher temperature sparks intermittently.

Provides better durability, when subjected to heat shock treatments. Soft and flexible, making it ideal for wrapping around uneven surfaces and equipment. Used extensively in ship fabrication/repairs, oil/gas, petrochemical/metal construction industries where heat insulation, insulation lining and extensive welding take place. Ideal to conduction heat away from point of heat impact. Density facilities increases heat flow, provide and efficient heat conduction system away from the falling sparks area.

Features

Excellent resin permeability: After removing wax, the fibers are exposed, allowing epoxy resin, silicone resin and other matrix materials to fully penetrate, significantly improving the dry and wet mechanical strength of the laminated board and avoiding delamination defects.

High temperature resistance and thermal stability: No organic wax residue, long-term use temperature can reach 300 ℃~500 ℃ (depending on the glass fiber model), instantaneous temperature resistance is higher, and no volatiles or carbonization are produced at high temperatures, with good dimensional stability.

High electrical insulation performance: no conductive impurities on the surface, stable dielectric performance, high breakdown voltage, suitable for high-frequency circuit substrates and high-voltage electrical insulation wrapping.

Clean and dust-free surface: After dewaxing and subsequent water washing treatment, the fabric surface is smooth, hairless, and stain free, reducing fiber dust and facilitating subsequent coating and laminating processes, resulting in a smoother appearance of the finished product. ‌‌

Color characteristics: After dewaxing treatment at 300 ℃~400 ℃, the finished product usually appears golden yellow or light brown, which is different from white or light yellow cloth that has not been dewaxed.

Chemical stability: retain the inherent acid and alkali resistance, corrosion resistance, non combustible characteristics of glass fiber, strong anti-aging ability, and long service life.

Processing adaptability: The texture is relatively soft (compared to untreated stiff fabric), easy to cut, sew, and punch, suitable for complex shape forming. ‌‌

Technical Parameters

Parameter	Specification Range
Product Name	Heat Cleaned Fiberglass Fabric
Process Type	Heat Cleaning / Thermal Desizing / Heat Treatment
Width (cm/in)	80cm / 100cm / 127cm / 150cm / 200cm (31" / 39" / 50" / 59" / 79")
Residual Sizing Content	< 0.2% (typically < 0.1%)
Surface Cleanliness	High – no organic contamination
Surface Energy	High (after heat cleaning)
Contact Angle (Water)	< 10° (after heat cleaning)
Tensile Strength (Warp) – Before	≥ 800 – 4000 N/50mm
Tensile Strength (Warp) – After	≥ 600 – 3500 N/50mm
Tensile Strength (Weft) – Before	≥ 600 – 3500 N/50mm
Tensile Strength (Weft) – After	≥ 450 – 3000 N/50mm
Strength Retention Rate	85% – 92%
Continuous Service Temperature	Up to 550°C (1022°F)
Resin Compatibility	Epoxy / Polyester / Vinyl Ester / Phenolic / Silicone / PTFE
Coating Compatibility	Silicone / PTFE / Acrylic / Polyurethane / Aluminum
Flame Resistance	Non-combustible / Self-extinguishing
Moisture Absorption	≤ 0.5%
Chemical Resistance	Resistant to: most acids, alkalis, organic solvents
Dimensional Stability	≤ 0.5%
Roll Length	50m / 100m / 200m / Custom

Fireproof Blanket Heat Treated Fiberglass Cloth Golden For Welding Blanket

FAQ

Q. 1: How long is the sample time ? Does the sample fee can be returned?

Proofing is usually 3-5 working days. If the order reach or exceed behind MOQ quantity, proofing fee refunded. If not reached behind MOQ quantity, proofing fee will be taken by you.
Q. 2: About the sample what is the cost of transportation?The freight depends on weight, packing size and your country or province region, etc.

You can confirm by photo and video to save this money, If you become our old customer.

Q. 3: How long can I expect to get the sample?

The samples will be ready for delivery in 3-5days. The samples will be sent via international express and would be arrived within 3-5 days.

Q. 4: Do you accept customized orders?

Yes, we do. Your customized orders are always welcomed. Please kindly offer us your samples or drawings, so that we can customize the products according to your preferences. About any further detail, please feel free to contact us.

Q. 5: Can we have our Logo or company name to be printed on your products or package?

Sure. Your Logo could be printed on your products by Hot Stamping, Printing, Embossing, UV Coating, Silk-screen Printing or Sticker.

Q. 6: How to order?

Please send us your purchase order by Email or call us sales line

We need to know the following information for your order before sending you PI.

1) Product information-Quantity, Specification(Size, Material, Technological if needed and Packing requirements etc.)

2) Delivery time required.

3) Shipping information-Company name, Street address, Phone&Fax number, Destination sea port.

4) Forwarder's contact details if there's any in China.

Q. 7: How can order the products without any acknowledge of import ?

We could arrange you shipping or air or express for you and deliver everything to your port or provide you door to door service.

Q. 8: Do you have stock ?

We have a warehouse with a lot of stock, and most of the products are in normal production. If we have stock, we can deliver immediately.
