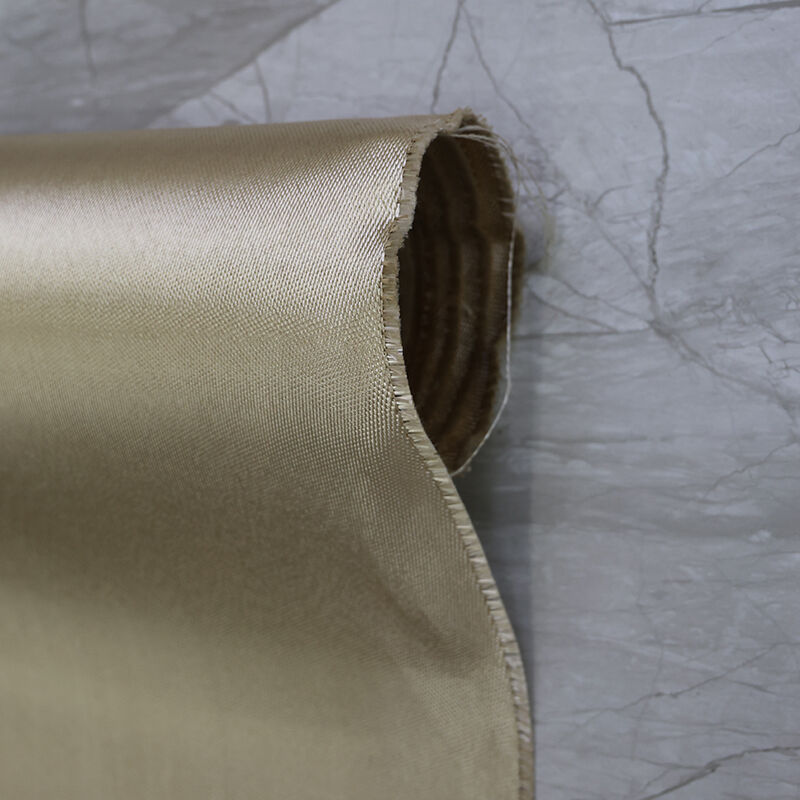

Twill Woven Heat Treated Fiberglass Fabric High Electrical Insulation

Twill Woven Heat Treated Fiberglass Fabric High Electrical Insulation

MOQ:	1000 pieces
Payment Terms:	T/T, PayPal, Xtransfer
Supply Ability:	50000 pieces per day

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China

Certification:

ISO9001

Application:

High Temperature Insulation

Weave Type:

Twill Woven

Standing Temperature:

550℃

Yarn Type:

E-Glass

Color:

Golden

Surface Energy:

High (after Heat Cleaning)

Technology:

Dewaxed/Desized

Surface Cleanliness:

High – No Organic Contamination

Flame Resistance:

Non-combustible / Self-extinguishing

Dimensional Stability:

≤ 0.5%

Packaging Details:

Wooden frame or cardboard box packaging, customizable

Highlight:

woven fireproof fiberglass fabric

woven heat treated fiberglass fabric

insulation fireproof fiberglass fabric

Product Description

Fire Proof Fabric Heat Resistant Material Coating Heat Treated Fiberglass Cloth

Product Description

Fiberglass cloth is widely used in the following areas:

*Reinforcement material: This is the most common use of fiberglass cloth. It is often used as a reinforcing skeleton material, compounded with matrix materials such as epoxy resin and unsaturated polyester resin to form fiberglass reinforced plastic (also known as glass fiber reinforced plastic). This composite material is lightweight and has high strength, and is commonly used in the manufacturing of ship hulls, automotive components, storage tanks, pipelines, cooling towers, sports equipment, etc.

*In the field of thermal insulation, glass fiber cloth can be used to manufacture insulation covers, fireproof blankets, and outer covering materials for pipeline insulation layers of high-temperature equipment, utilizing its high temperature resistance and non flammability characteristics.

*Electrical insulation field: used for manufacturing circuit board substrates (such as FR-4 copper-clad laminates), motor insulation materials, cable winding tapes, etc.

*In the field of architecture, it is used to enhance cement products, make reinforced tire bases for waterproofing membranes, and interior decorative wall coverings.

*In the field of chemical anti-corrosion: as a reinforcement layer for corrosion-resistant fiberglass equipment, it is used for chemical pipelines, storage tanks, washing towers, etc.

Features

Excellent resin permeability: After removing wax, the fibers are exposed, allowing epoxy resin, silicone resin and other matrix materials to fully penetrate, significantly improving the dry and wet mechanical strength of the laminated board and avoiding delamination defects.

High temperature resistance and thermal stability: No organic wax residue, long-term use temperature can reach 300 ℃~500 ℃ (depending on the glass fiber model), instantaneous temperature resistance is higher, and no volatiles or carbonization are produced at high temperatures, with good dimensional stability.

High electrical insulation performance: no conductive impurities on the surface, stable dielectric performance, high breakdown voltage, suitable for high-frequency circuit substrates and high-voltage electrical insulation wrapping.

Clean and dust-free surface: After dewaxing and subsequent water washing treatment, the fabric surface is smooth, hairless, and stain free, reducing fiber dust and facilitating subsequent coating and laminating processes, resulting in a smoother appearance of the finished product. ‌‌

Color characteristics: After dewaxing treatment at 300 ℃~400 ℃, the finished product usually appears golden yellow or light brown, which is different from white or light yellow cloth that has not been dewaxed.

Chemical stability: retain the inherent acid and alkali resistance, corrosion resistance, non combustible characteristics of glass fiber, strong anti-aging ability, and long service life.

Processing adaptability: The texture is relatively soft (compared to untreated stiff fabric), easy to cut, sew, and punch, suitable for complex shape forming. ‌‌

Technical Parameters

Parameter	Specification Range
Product Name	Heat Cleaned Fiberglass Fabric
Process Type	Heat Cleaning / Thermal Desizing / Heat Treatment
Heat Treatment Temperature	350°C – 650°C (660°F – 1200°F)
Weave Structure	Plain Weave / Twill Weave / Satin Weave / Lenor Weave
Weight (g/m²)	50 – 900 g/m²
Thickness (mm)	0.05 – 1.2 mm
Width (cm/in)	80cm / 100cm / 127cm / 150cm / 200cm (31" / 39" / 50" / 59" / 79")
Residual Sizing Content	< 0.2% (typically < 0.1%)
Tensile Strength (Weft) – Before	≥ 600 – 3500 N/50mm
Tensile Strength (Weft) – After	≥ 450 – 3000 N/50mm
Strength Retention Rate	85% – 92%
Elongation at Break	≤ 3% – 5%
Temperature Resistance (Substrate)	550°C – 800°C (1022°F – 1472°F)
Continuous Service Temperature	Up to 550°C (1022°F)
Chemical Resistance	Resistant to: most acids, alkalis, organic solvents
Dimensional Stability	≤ 0.5%
Wettability / Resin Flow	Excellent – resin wets out completely
Packaging	Moisture-proof paper + Plastic film + Woven bag / Carton
Certifications	ISO 9001

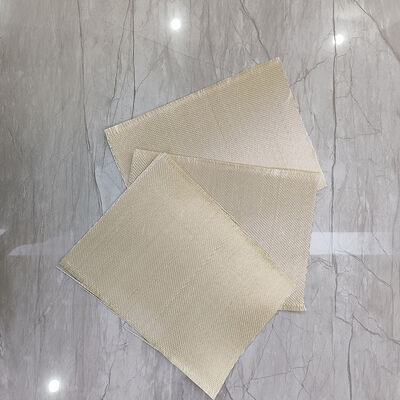

Twill Woven Heat Treated Fiberglass Fabric High Electrical Insulation

FAQ

Q. 1: How long is the sample time ? Does the sample fee can be returned?

Proofing is usually 3-5 working days. If the order reach or exceed behind MOQ quantity, proofing fee refunded. If not reached behind MOQ quantity, proofing fee will be taken by you.
Q. 2: About the sample what is the cost of transportation?The freight depends on weight, packing size and your country or province region, etc.

You can confirm by photo and video to save this money, If you become our old customer.

Q. 3: How long can I expect to get the sample?

The samples will be ready for delivery in 3-5days. The samples will be sent via international express and would be arrived within 3-5 days.

Q. 4: Do you accept customized orders?

Yes, we do. Your customized orders are always welcomed. Please kindly offer us your samples or drawings, so that we can customize the products according to your preferences. About any further detail, please feel free to contact us.

Q. 5: Can we have our Logo or company name to be printed on your products or package?

Sure. Your Logo could be printed on your products by Hot Stamping, Printing, Embossing, UV Coating, Silk-screen Printing or Sticker.

Q. 6: How to order?

Please send us your purchase order by Email or call us sales line

We need to know the following information for your order before sending you PI.

1) Product information-Quantity, Specification(Size, Material, Technological if needed and Packing requirements etc.)

2) Delivery time required.

3) Shipping information-Company name, Street address, Phone&Fax number, Destination sea port.

4) Forwarder's contact details if there's any in China.

Q. 7: How can order the products without any acknowledge of import ?

We could arrange you shipping or air or express for you and deliver everything to your port or provide you door to door service.

Q. 8: Do you have stock ?

We have a warehouse with a lot of stock, and most of the products are in normal production. If we have stock, we can deliver immediately.
